Electric Bike Weight Limit: Can Your 200–400 lb Weight Actually Ride Safely?

Many riders assume everything is fine as long as they stay under the rated number, but total load from body weight, gear, and terrain can quietly push the system closer to its limit. This affects braking distance, battery range, and long-term durability. Do you really know how much your e-bike can safely handle? This guide breaks it down clearly so you can ride with confidence.

What is the weight limit for electric bikes？

Typical Weight Limits By E-bike Type

Manufacturer Rated Weight Vs Real-World Safe Load

The “rated load” of an electric bike is typically measured under controlled laboratory conditions. During testing, a stable static load is applied to the frame, wheels, and fork structure, and a safety factor is built into the design, usually around 1.2–1.5 times, to prevent the structure from operating at its absolute limit.

However, real riding conditions are completely different from laboratory environments. Roads constantly introduce changing impact loads, such as potholes, speed bumps, gravel surfaces, and curbs. Academic studies on e-bike frame dynamics and frame fatigue simulation show that repeated impacts can increase structural stress far beyond static body weight.

These factors create continuously varying dynamic loads instead of a single static weight, which is why the real-world safe load is usually lower than the labeled rating.

Higher impact forces on potholes and rough terrain

The difference between dynamic load and static load is critical. Static load refers to a steady, constant weight applied slowly, while dynamic load comes from sudden impacts during riding. In real-world conditions, these impacts can be significantly amplified:

In long-term structural testing across different e-bike frames and wheel systems, I consistently find that laboratory-rated loads fail to represent real dynamic stress. Light road irregularities typically generate around 1.5× structural load, moderate potholes increase that to 3–5×, and severe impacts at higher speed can exceed 10× instantaneous force.

These amplified peak forces are one of the main sources of structural damage.

When the impact energy exceeds the absorption capacity of the suspension system, the suspension reaches a “bottom out” condition. At this point, the remaining impact is no longer absorbed and is directly transferred to the frame and wheel structure.

Spokes are one of the earliest structural components to reach fatigue limits in long-term overload scenarios. In repeated high-load testing cycles, I consistently see tension imbalance develop first, followed by accelerated truing frequency, and eventually localized spoke failure. Once this pattern begins, wheel stability degrades progressively rather than suddenly.

At the same time, the welding points on the frame may develop micro cracks under long-term cyclic stress, and these cracks can gradually expand over time, creating structural risk.

In addition, load standards vary across different brands. Some premium manufacturers apply stricter testing criteria, while lower-cost models may have more aggressive or less conservative rated values, which means real-world safety margins can differ significantly.

Why weight limit is not just about rider weight

The total load of an electric bike is not only the rider weight, but the combined system load, including backpacks, cargo, child seats, and all attached accessories. These additional weights work together and form the actual foundation of stress on the entire bike.

Riding posture also significantly changes how forces are distributed. In a normal seated position, your weight is shared by the saddle (about 50%–60%), handlebars (about 15%–20%), and pedals (about 20%–30%).

Once you switch to standing pedaling, the saddle support disappears completely, and 100% of your body weight is transferred instantly to the pedals and handlebars.

Terrain changes also affect load distribution. On flat roads, the load remains relatively stable. During uphill riding, the motor must continuously deliver higher torque, keeping the system under sustained high load.

During downhill riding, more load is transferred to the braking system, placing higher demands on braking force and thermal stability.

Acceleration and braking introduce short-term load spikes that are often underestimated. During hard acceleration, the rear wheel experiences sudden torque loading. During emergency braking, weight rapidly shifts toward the front wheel and fork structure. These short-duration loads are often much higher than static body weight and are a major contributor to structural fatigue.

Therefore, the weight limit of an electric bike is not simply a rider weight ceiling; it also reflects the system’s safety and operating assumptions under real riding conditions.

What happens if you exceed the weight limit?

You can use the typical weight limits by bike type above as a reference to understand which category of e-bike fits your riding needs. Most reputable manufacturers test their frames, wheels, and braking systems under standardized load conditions before release to ensure basic safety margins.

However, exceeding the rated weight limit or miscalculating your total load (rider + cargo + accessories) can push the system beyond its intended design range, which may lead to the following mechanical and performance-related risks:

Frame Stress And Long-Term Fatigue

When a bike is under sustained overload conditions, the bending and twisting forces on the frame continue to increase. Welding joints, as the most concentrated structural connection points, are the first areas to experience higher localized stress. In this long-term repeated loading environment, micro cracks gradually form inside the material and continue to grow with riding cycles.

From an engineering perspective, when repeated stress increases by about 20%–30%, the rate of damage propagation becomes significantly faster, although there are usually no visible external signs in the early stage.

In many cases, riders may only notice slight noise or reduced stiffness, while internal structural changes have already begun.

As this accumulation continues, the frame may develop slight irreversible deformation under load, meaning certain areas no longer fully return to their original shape. This is often a sign that the material has entered a late damage stage, where further strength degradation accelerates.

Motor Overheating And Power Loss

When total bike weight increases, the motor must produce higher torque to maintain the same speed, especially during starts and climbs. This directly increases current demand and accelerates heat generation. Under heavy load conditions, current draw typically rises by about 15%–40%, leading to much faster thermal buildup.

As temperature continues to rise, copper losses and iron losses inside the motor also increase, reducing overall efficiency. This effect becomes more obvious during sustained low-speed, high-torque operation, often showing up as power drop after continuous climbing.

Once the temperature reaches the protection threshold, the system activates current limiting. Power output is intentionally reduced, and riders will clearly feel weaker acceleration and reduced climbing ability, with performance dropping by roughly 10%–30%.

Controller Overheating And Electrical Stress

Under overload conditions, the controller must continuously supply higher current, keeping MOSFET power components under sustained high load. Heat accumulates while cooling capacity becomes limited. In this state, temperature may rise by 20–40°C in a short period.

When heat dissipation is insufficient, the controller may enter protection mode, using current limiting or intermittent output to reduce internal temperature. This behavior often appears as unstable power delivery during riding, with alternating strong and weak output or temporary power cuts.

Long-term exposure to high current and high temperature also accelerates component aging, such as capacitor degradation or solder joint fatigue, gradually reducing overall system reliability.

Brake Performance Degradation

As total bike weight increases, the braking system must absorb more kinetic energy during deceleration, significantly increasing thermal load on the braking system. This effect becomes especially noticeable during long descents or frequent braking conditions.

During extended downhill load testing, brake thermal saturation becomes the primary limiting factor. Once rotor temperatures exceed normal operating ranges, I consistently observe a sharp drop in friction stability. Under heavy system load, braking distance typically increases by 20%–60% depending on gradient and duration.

Wheel And Spoke Deformation Risks

Under overload conditions, the wheel system continuously experiences vertical impacts from the ground combined with structural tension changes. Spokes must handle both tension and impact forces at the same time, making load distribution more uneven and reducing overall wheel stability.

Over time, spoke tension variation may increase by about 20%–50%, leading to slight wheel wobble or structural deformation. This also increases the frequency of wheel truing.

As long-term stress accumulates, some spokes may eventually break, which is relatively common in long-term use scenarios above 300 lbs, especially on rough terrain.

Suspension System Overload And Reduced Damping Efficiency

As load increases, suspension compression rises significantly, reducing usable travel by about 20%–40%. The suspension system is continuously pushed closer to its bottoming range, leaving less room to absorb impacts.

Once bottoming occurs, remaining impact forces can no longer be absorbed effectively and are directly transferred to the frame structure, resulting in a more noticeable harsh riding feel and reduced comfort.

Long-term operation under high compression also accelerates seal wear, increasing the risk of oil leakage or damping degradation in hydraulic suspension systems.

How to calculate your safe riding weight?

When calculating the safe riding weight of an electric bike, the key point is not simply “can it still move”, but whether the bike remains within its designed safety range during long-term use. Most manufacturers specify a rated load, which already includes a certain safety margin.

However, in real-world use, staying close to or exceeding this limit for long periods will significantly increase stress on the frame and components. It is also important to note that even if short-term overload does not immediately cause failure, many brands do not provide warranty coverage for damage caused by usage above 300 lbs.

A proper calculation method is not based on rider body weight alone. It must include all actual loads in a system-level assessment, including riding gear, cargo, and any additional accessories. Only by considering all these factors can you approach a realistic “total system weight” and avoid underestimating the actual load.

Simple load formula (rider + cargo + gear)

The most basic calculation method is to add rider weight, personal items, cargo on the bike, and backpack weight together to get the total system load. This is often overlooked in real-world use, as many riders only focus on body weight and ignore an additional 10–30 lbs difference from gear and equipment.

For example, in commuting scenarios, a regular backpack, a laptop, or items mounted on a rear rack can easily increase total weight. In delivery or long-distance riding scenarios, this additional load can account for 10%–20% of body weight.

The purpose of this simple formula is to establish the concept of “system weight” rather than relying on body weight alone, helping avoid misjudging the bike’s real load capacity.

Recommended Safety Margin (15–30%)

After calculating total weight, an additional safety margin must be considered to account for road impacts and dynamic load variations. Urban commuting environments are relatively stable, so about 15% buffer is recommended. In mountain or complex terrain conditions, where impacts are more frequent and stronger, this range should increase to 20%–30%.

The reason for this safety margin is that real riding forces are much higher than static weight. For example, when passing potholes or speed bumps, instantaneous impact forces can be amplified multiple times. Without sufficient buffer, long-term use will keep the frame, wheels, and suspension system under continuous high stress.

Adjusting for Terrain And Incline

Different terrains have a significant impact on total load behavior. During uphill riding, the motor must continuously apply more effort to move the bike forward, keeping the system under prolonged high load conditions. This increases heat generation in both the motor and battery and can also reduce overall performance.

During downhill riding, more stress is transferred to the braking system, as the bike must continuously reduce speed. This causes brake heat buildup, which may reduce braking stability and consistency.

On rough or damaged roads, the bike is constantly exposed to repeated impacts from the ground. This “rapidly changing load pattern” creates uneven stress across the frame and wheels, making the effective load much higher than the static calculated weight.

How to choose the right e-bike for heavier riders

Choosing an electric bike for heavier riders is not about comparing a single specification. It depends on whether the entire system can remain stable under long-term load conditions. Frame strength, motor output, wheel structure, and electrical system all work together to determine real-world performance, not just the maximum load rating.

Frame And Body Structure System: The Physical Foundation Of Heavy Load Riding

From long-term structural load comparisons, I consistently find that frame material alone does not determine real-world load capacity. Aluminum frames perform well under normal riding conditions due to their high strength-to-weight ratio, but under repeated high-load cycling, they tend to accumulate fatigue more quickly, especially at stress concentration zones such as weld joints and tube intersections.

In contrast, chromoly steel structures demonstrate more stable deformation behavior under sustained load cycles. Instead of sudden fatigue accumulation, stress is distributed more evenly across the frame, which improves resistance to rough terrain impacts and long-duration heavy loading. The trade-off, in practical testing, is increased overall system weight, which can slightly affect acceleration efficiency.

Beyond material selection, I consistently observe that structural details such as welding quality, reinforcement at load-bearing joints, and tube wall thickness have a greater impact on real load capacity than the base material itself. These factors often determine when micro-deformation begins under repeated stress cycles.

Frame geometry also plays a measurable role in load behavior. In practical riding analysis, step-through and low-center-of-gravity designs tend to improve load distribution stability, especially under uneven rider positioning. These geometries reduce frame torsional stress during mounting, dismounting, and low-speed maneuvering under heavy load conditions.

Power System: Torque (Nm) And Load Matching

For heavy riders, motor wattage is only a surface-level indicator. The real factor that determines starting and climbing ability is torque output. Wattage represents overall power, while torque determines whether the bike can actually “move the load effectively”.

In riding conditions above 300 lbs, low-speed torque performance becomes critical. A torque range of 60–80 Nm or higher is generally more suitable for heavy load applications. When torque is insufficient, common symptoms include slow acceleration, weak climbing ability, and prolonged high-load motor operation.

Even with a high-wattage system, poor torque matching may result in fast heat buildup but weak actual propulsion.

Overlooked Mechanical Weak Points: Wheels, Spokes, And Braking Behavior

Wheel systems are often the first area to reveal problems in heavy load riding. Standard 14G spokes may experience tension imbalance and structural wear under long-term high loads and rough road impacts, often requiring frequent wheel adjustments over time.

In comparison, thicker 12G or 13G spokes combined with double-wall rims provide better impact distribution and improve overall wheel stability, reducing the likelihood of rim wobble. Wider tires also increase contact area, reducing unit pressure and lowering the risk of pinch flats.

For braking systems, four-piston calipers combined with 180mm or larger rotors provide more stable braking performance under heavy loads and help prevent noticeable performance drop during prolonged braking.

Electrical System Requirements: Battery Capacity And Current Management

Increased rider weight directly affects range because the motor requires higher current to maintain the same speed, increasing overall energy consumption. In real-world use, when rider weight nearly doubles, a 40%–50% reduction in range is commonly observed.

In battery selection, smaller capacity packs are more likely to experience rapid voltage drop under high load discharge, which not only affects output stability but also accelerates heat buildup and cell aging.

In contrast, larger capacity systems distribute current more evenly across more cells connected in parallel.

For riders above 400LB, battery systems of 40Ah or higher are generally more stable. They not only improve range but also enhance long-term durability under sustained high-load conditions.

What electric bike is 400 lb capacity for adults?

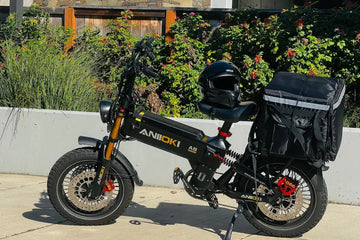

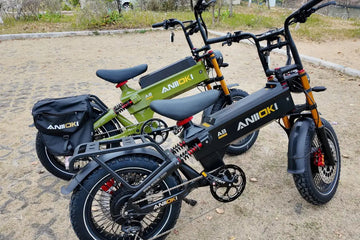

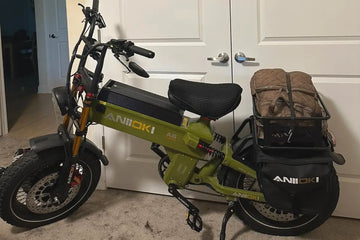

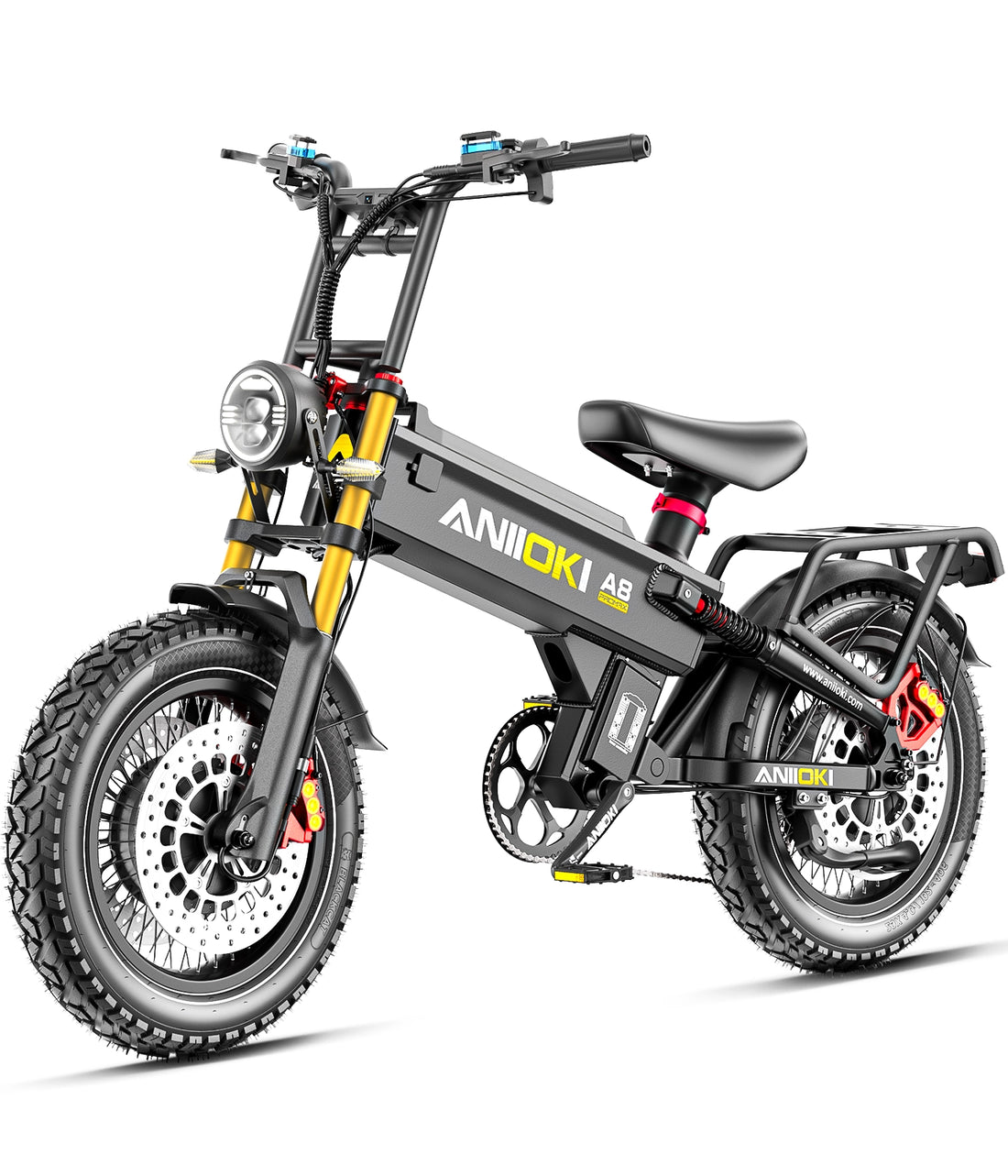

At Aniioki, we design our electric bikes with exceptional durability and strength. The entire Aniioki e-bike lineup boasts a massive weight limit of up to 500 lbs, making them the perfect, reliable choice for heavy riders and big-and-tall adults. This heavy-duty payload capacity not only ensures a stable and safe ride for larger individuals but also provides more than enough room to carry all your essential travel gear, groceries, or delivery equipment without sacrificing performance.

FAQ:

What is the weight limit for electric bikes.?

Most e-bikes support 220–400 lbs (100–180 kg). Commuter and folding bikes are usually 250–300 lbs, while fat tire and cargo models reach 400–600 lbs. Matching rider weight to category improves stability and reduces 20–40% component wear.

Does the weight limit include backpack and cargo.?

Yes, it includes rider, backpack, cargo, and accessories. A 20 lb backpack can reduce safety margin by 10–15%, pushing the system closer to its design limit and increasing brake heat and wheel stress during rides.

What happens if you exceed the e-bike weight limit.?

Short-term riding may still work, but impact forces on bumps can increase 2–5×. Over time this leads to 20–40% faster brake wear, more wheel truing, and reduced battery range by 20–50% under load.

How should heavier riders choose an e-bike.?

300+ lbs riders need 60–80 Nm torque, 3.0+ inch tires, and 180 mm hydraulic brakes. Above 400 lbs total load, cargo or reinforced bikes with 40Ah+ batteries offer better durability and 30% longer component lifespan.

How do you calculate safe riding weight for an e-bike.?

Total load = rider + gear + cargo (often +10–30 lbs). Add a safety buffer of 15% for city use and 20–30% for rough roads. This helps absorb 2–5× impact spikes from potholes and improves long-term reliability.

Can a 300 lb person ride an ebike?

Yes, many e-bikes can support 300 lbs if the total system load stays within the rated range. Most commuter and fat tire models are designed around 250–400 lbs capacity. In real use, riders at this weight often benefit from stronger wheels and 60–80 Nm torque motors for stable climbing.

Can a 400 pound person ride a bike?

Yes, but it requires a heavy-duty or cargo e-bike rated around 400–600 lbs. Standard commuter bikes may struggle with range drop and wheel stress. In real scenarios, riders around 400 lbs usually see 30–50% faster battery drain and should prioritize reinforced frames and 4-piston brakes.

What tires are best for a 400 lbs rider?

Wide tires around 3.0–4.0 inches work best, as they spread load over a larger contact area. This reduces sidewall pressure and improves stability on rough roads. In practice, proper tire pressure control(often 20–30 PSI depending on tire) helps reduce pinch flats and improves comfort significantly.

What is the 105% rule in cycling?

The 105% rule suggests keeping average riding load within about 105% of a system’s comfortable capacity for long-term durability. For example, a 300 lb rated bike performs more reliably when total load stays near 285–300 lbs. It helps reduce long-term fatigue and component wear.

How much do e bikes weigh?

Most e-bikes weigh between 45–75 lbs (20–34 kg). Lightweight folding models can be around 35–45 lbs, while cargo or fat tire e-bikes may exceed 80–100 lbs. Heavier bikes often feel more stable under load but are harder to carry or store.

Can two people ride an e-bike safely?

Only if the bike is specifically rated for tandem or cargo use, typically 400–600 lbs total capacity. Standard e-bikes are not designed for two riders, and overload can increase braking distance by 30–60% and overheat the motor during climbs.

Does weight limit include backpack and cargo?

Yes, the rated limit includes rider weight plus all added load such as backpack, groceries, and accessories. A 20 lb backpack can significantly change safety margins. Many riders underestimate this and unknowingly exceed the effective design load during daily commuting.

Is exceeding limit once dangerous?

One-time overload is not usually catastrophic, but it can still cause stress spikes up to 3–5× during bumps or curb impacts. This may loosen spokes or slightly deform wheels. Repeated overload greatly increases long-term frame fatigue and component wear.

How to extend bike lifespan under heavy load?

Keep total load within 80–90% of rated capacity when possible. Maintain tire pressure around 25–35 PSI depending on tire type and check spokes monthly. In real use, proper maintenance can extend wheel and brake lifespan by 20–40% under heavy rider conditions.
